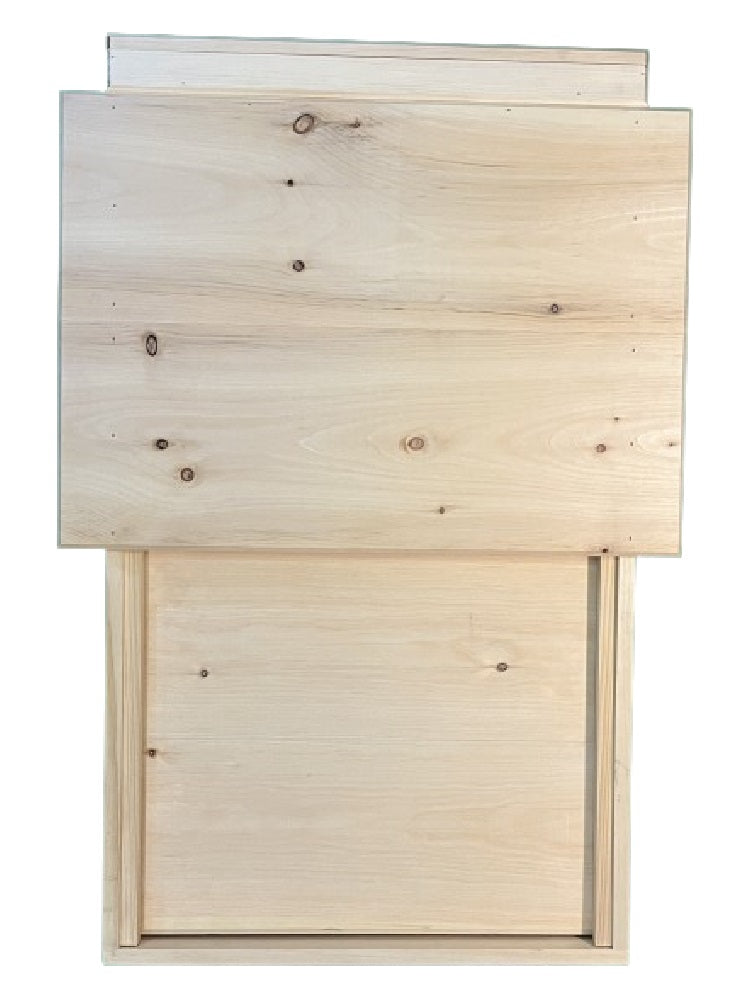

certified humane automatic chicken coop door front view

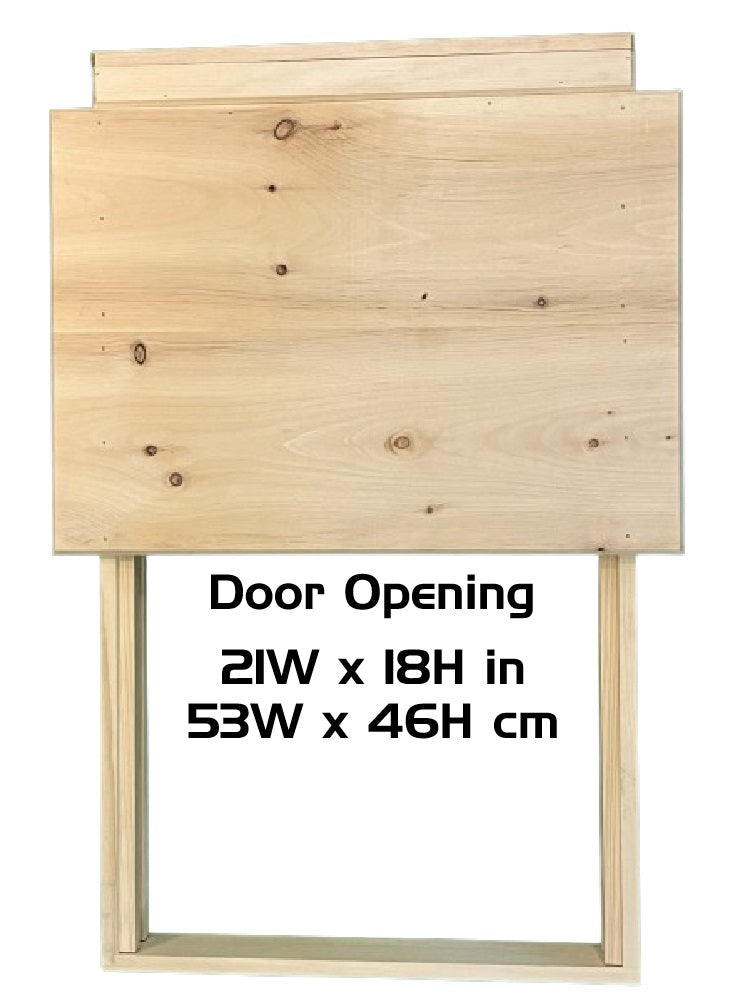

certified humane automatic chicken door open with motor housing 21 inch x 18 inch opening

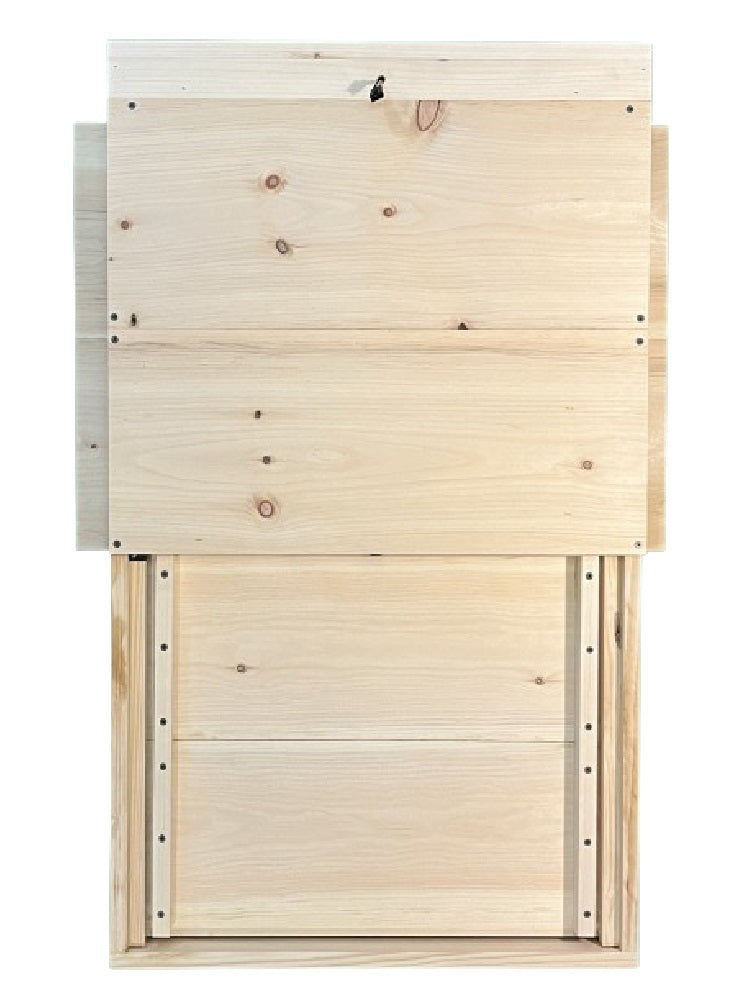

certified humane automatic chicken coop door back view

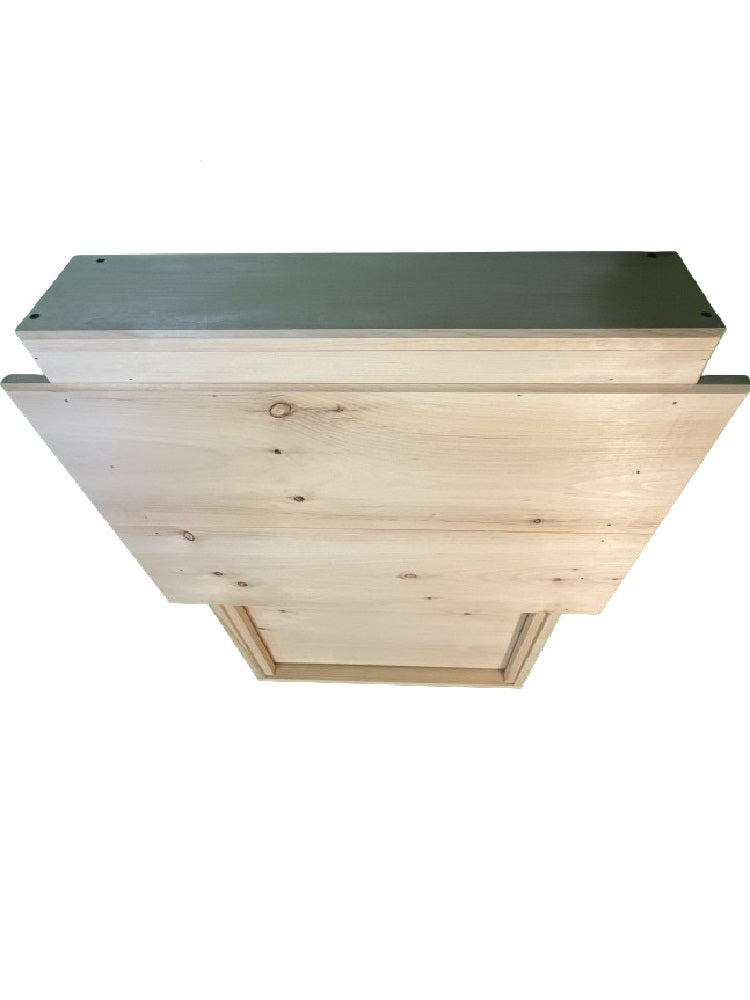

certified humane automatic chicken coop door top front view

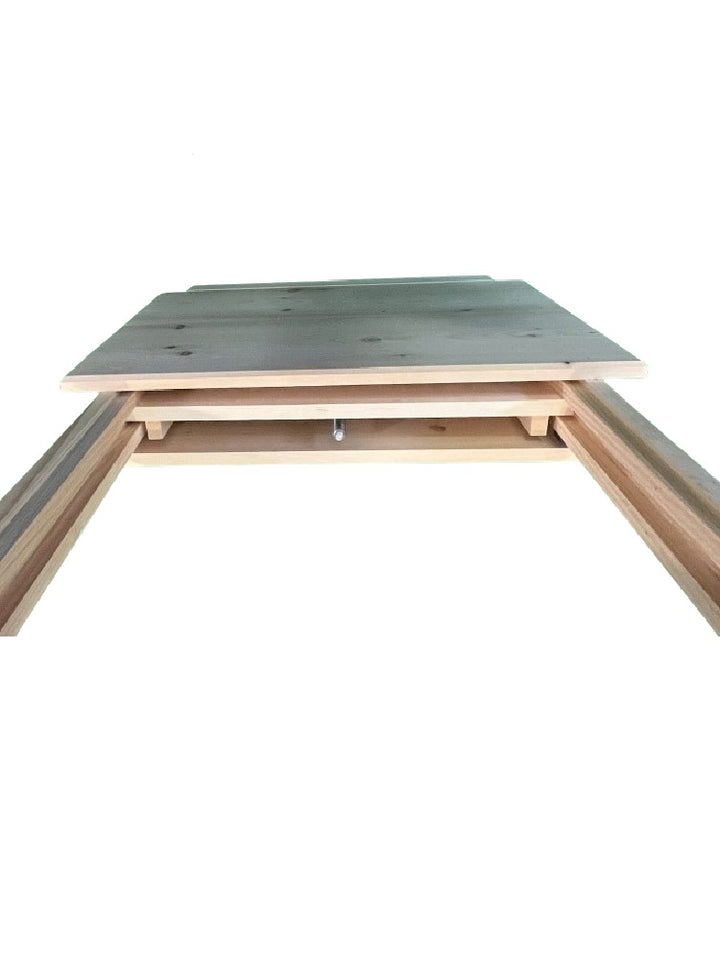

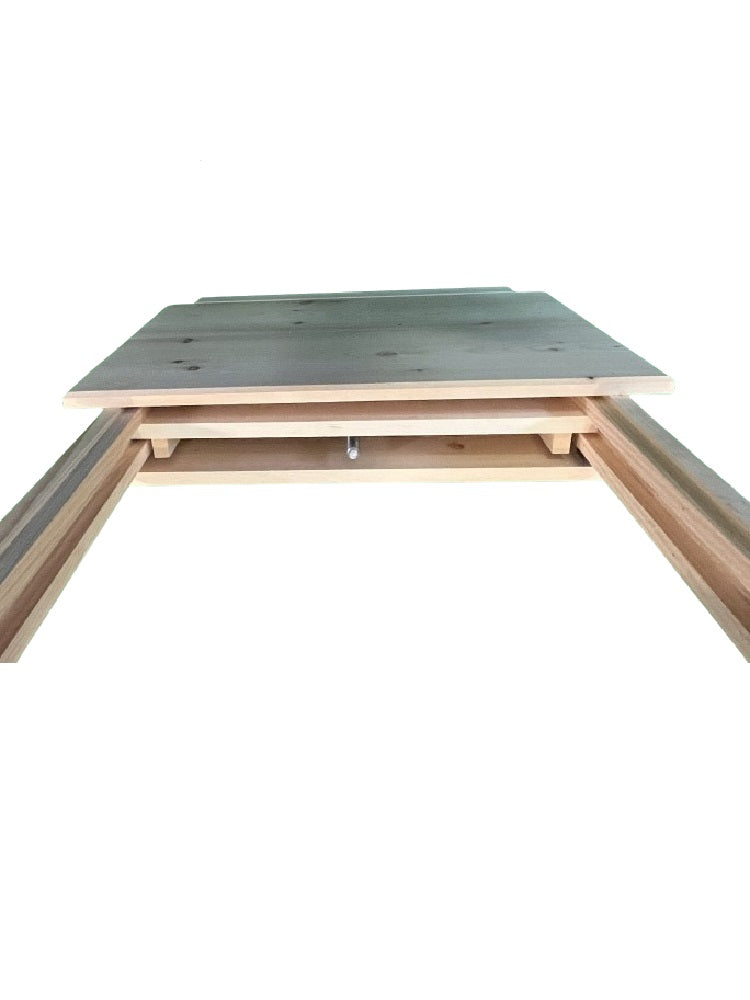

certified humane automatic chicken coop door bottom front view

Certified Humane Automatic Chicken Coop Door - Without Controller

CT-007-DIY

Regular priceUSD 349.99
/
Shipping calculated at checkout.

The Coop Tender® Certified Humane Automatic Chicken Coop Door is suitable for all chicken breeds and provides an opening which is 21 inches wide by 18 inches high. The opening size meets the requirements defined in "Humane Farm Animal Care-Animal Care Standards-2014 Standards: Egg Laying Hens" which states: "It is recommended that exits are at least 18" (46 cm) high and 21" (53 cm) wide."

Effortlessly automate your chicken coop with our fully assembled door. Made with durable solid wood and a 5/8 inch steel worm drive, it's built to last. Use your own controller or design one to integrate with our solid state magnetic limit switches and high-torque gear motor. Keep your feathered friends safe and secure with ease.

  • 18 in. (46 cm) H x 21 in. (53 cm) W door opening.
  • Constructed with Solid Indoor / Outdoor rated 1 inch boards - no plywood.
  • Treated with Rain Guard non-toxic wood sealer.
  • High-torque gear motor - Installed
  • Solid Steel Acme Threaded Screw / Worm Drive - Installed
  • Solid State Magnetic Limit Switches - Installed

This door comes without a door controller. Below is a schematic diagram which shows how to connect your door controller to the connector wiring for the motor and limit switches:

door controller wiring schematic

Your door controller will need to handle power to the motor to open and close the door.

  • Motor Operating Current: 300 milliAmps (0.3 Amps)
  • Max motor current (deadlock): 1,200 milliAmps (1.2 Amps)

Door controller will need to be capable of providing sufficient current to power the motor and should also limit current to prevent overheating of the motor windings, leading to motor failure.

Coop Cutout

24 inches wide x 41 1/2 inches high

Coop Door Opening

21 inches wide x 18 inches high

Material

  • Solid Indoor/Outdoor rated lumber treated with non-toxic wood sealer.
  • 5/8 inch Solid steel Acme threaded screw / worm drive

Drive mechanism

Solid steel worm / screw drive

DC motor

  • Speed 90-180 RPM
  • Voltage 12-24 Volts DC
  • Amperage 0.3 Amps
  • Torque 4.8 in - lbs.
  • Rotation Reversible
  • Duty Continuous
  • Shaft 1/4" dia. x 5/8" with crosshole
  • Shaft Crosshole 3/32"

All U.S bound and international orders ship via FedEx, UPS or United States Postal Service (U.S.P.S.).

Orders ship within 5 business days. If you have an urgent need, please contact us. We will do our best to accommodate.

The UPS delivery map below shows how many days your automatic chicken door order will take to be delivered after it is shipped.

automatic chicken door delivery map

Transit days may increase during peak holiday seasons.

We reserve the right to cancel any order if actual shipping charges become unreasonable to ship your order.   You will be notified if this should occur.

We are not responsible for incorrect addresses or extra charges that may occur from changing an address after your order has shipped. If you provided an incorrect address at checkout or request an address change after your order has shipped, you will be responsible for any additional charges which may be incurred to reroute your order.



coop door carpenter using a miter saw
coop door electrical engineer tuning an oscilloscope
Handcrafted

Quality Precision

Precision, attention to detail and extensive testing ensure a quality, long lasting automatic chicken door.
