Large Automatic Chicken Door + Internet Wi-Fi + Predator Motion Detect Bundle
CT-004A-Wi-FiPred
- Automatically opens your coop door at dawn and securely closes it at dusk, or schedule door open and close times.
- Programmable coop door controller: Program custom options, adjust settings and manually override your door.
- 12 x 12 in. (30 x 30 cm) door opening
- Energy Efficient: Consumes less than 4 watts when plugged into a standard electrical outlet.
- Constructed with Solid Indoor / Outdoor rated lumber - no plywood.
- Treated with Rain Guard non-toxic wood sealer.
-
Solar Power Capable: with the optional coop door solar module.
- At-A-Glance Status LED Lights make it easy to check the status of your coop door from a distance in the dark.
 |
 |
Included in your Large Automatic Chicken Door Wi-Fi Motion Detect Bundle:
- Large Automatic Chicken Door
- Automatic Chicken Door Controller
- Internet Wi-Fi Module
- 1-Year Cloud Service Subscription

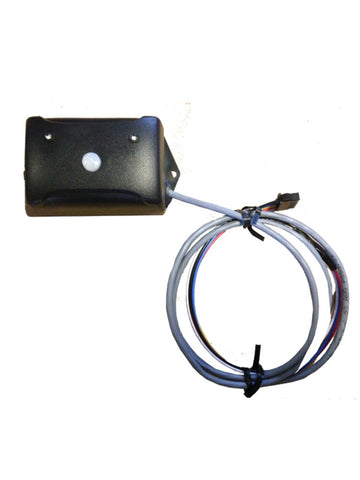

- Predator Motion Detect Module

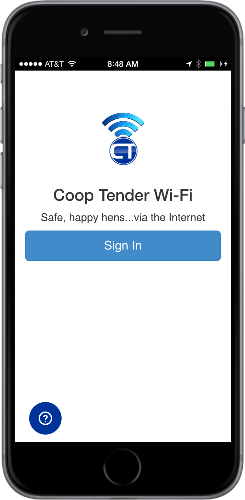

- Universal Web App™
- Weather Proof Temperature Module
- IEC AC Power Cord
- Mounting Screws (4 2-inch galvanized wood screws)
- A Cloud Service Subscription. A one-year subscription is included with purchase.
- Automatically Opens and Closes your Coop Door.
- Three modes of operation: Dawn-to-Dusk (A.K.A. Dusk-to-Dawn), Schedule, or Manual.
- Internet Enabled: Internet Wi-Fi module sold separately.
- Solar Coop Door Operation: Connect the optional coop door solar module to operate using energy from the sun.
- Programmable Freeze Protect - door stays closed when it's dangerously cold outside, working to protect your poultry investment.
- Programmable dawn and dusk delays - delay opening and closing for any amount of time (1 minute to 10 hours).
- Microcontroller digital control eliminates frozen mechanical components in winter.
- Solid Steel Acme threaded screw drive: True door lockdown. Predators are not able to open it when it is closed.
- Simple installation. Slide door into cutout in coop, secure with 4 mounting screws (included).
- Manual Control: Open and close the door manually using the keypad menu. With the optional Wi-Fi module, use the Universal Web App remote control.
- Solid indoor/outdoor rated lumber construction - Treated with Rain Guard non-toxic wood sealer.
- 100% predator proof! Have peace of mind knowing that your hens are safe at night. Door cannot be opened by raccoons, cougars, bobcats, mink, coyotes, opossums, skunks or any other nighttime predator.
- Fully assembled.
|
Input Voltage |
85 - 264 Volts AC (Electric Operation) 12 - 19 Volts DC (Solar Operation) |
|
AC Power consumption |
1 Watt |
|
DC Power Consumption (idle) |
40mA @ 12VDC |
|
DC Power Consumption (power save mode) |
20mA @ 12VDC |
|
DC Power Consumption (chicken door opening or closing) |
150mA-300mA @ 12VDC |
|
Max Charging Power |
600mA |
|
Coop Cutout |
15 inches wide x 28 1/4 inches high |
|
Coop Door Opening |
12 inches wide x 12 inches high |
|
Material |
|
|
Drive mechanism |
Solid steel worm / screw drive |
|
DC motor |
12 Volts |
|
Door opening time |
~1 1/2 minutes |
|
Door closing time |
~1 1/2 minutes |
|
Operating temperature |
-20 to +185 ℉ |
