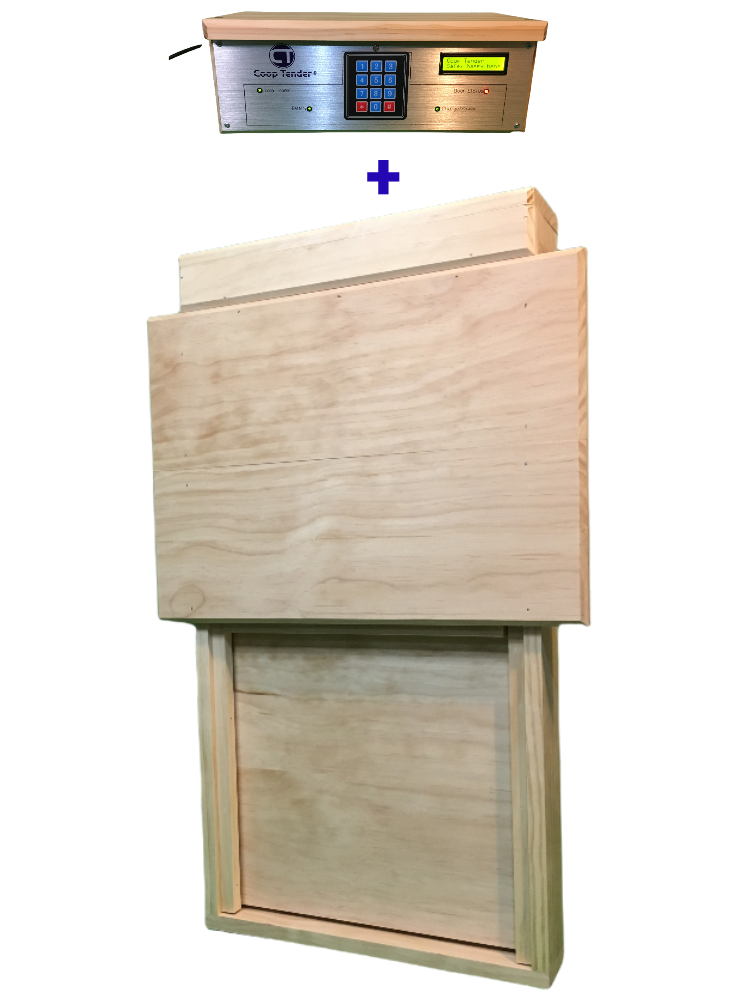

Coop Tender® Internet WiFi Enabled Extra Large Automatic Chicken Door is a fusion of energy efficient micro-controller electronics, solid steel drive and time-honored wood craftsmanship.
Suitable for all chicken breeds, ducks, geese as well as small and larger turkey varieties up to 30 pounds.
Automatically opens your coop door at dawn and securely closes it at dusk, or schedule door open and close times!
Programmable door controller: Program custom options, adjust settings and manually override your door.
Energy Efficient: Consumes less than 1 watt when plugged into a standard electrical outlet.

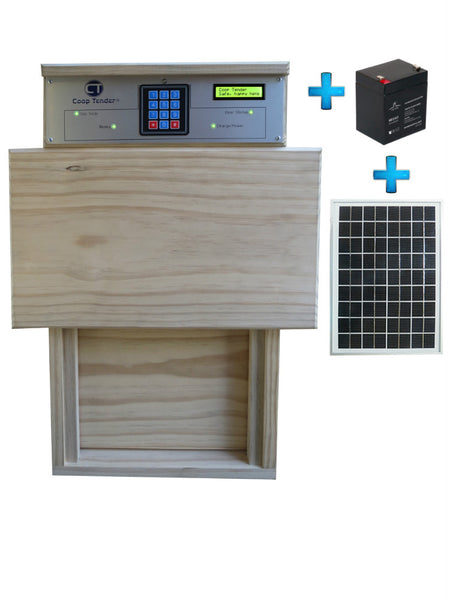

Connect the optional
solar module to
operate your door with energy from the sun.
Internet WiFi Enabled Door: Connect the optional
coop door Internet Wi-Fi Module to control, monitor, program and receive coop door alerts from anywhere in the world with an Internet connection and browser. Use your smartphone as a
remote control for your extra large automatic chicken door.
Our Extra Large Automatic Chicken Door is constructed with solid 1 inch dimensional lumber. Indoor / Outdoor rated select grade pine lumber is treated with an environmentally safe, non-toxic treatment which lasts a lifetime and never needs to be re-applied
At-A-Glance Status LED Lights make it easy to check the status of your coop door from a distance in the dark.
;
Key Extra Large Automatic Chicken Door Features:
- Automatically Opens and Closes your Coop Door
-
Three modes of operation: Dawn-to-Dusk (A.K.A. Dusk-to-Dawn), Schedule, or Manual
-
Internet Enabled - Internet Wi-Fi module included.
-
Programmable Freeze Protect - door stays closed when it's too cold outside
-
Programmable dawn and dusk delays - delay opening and closing for any amount of time (1 minute to 10 hours).
-
Computer driven digital control eliminates frozen mechanical components in winter
-
Solid Steel Acme threaded screw drive: True door lockdown. Predators are not able to open it when it is closed.
-
Simple installation. Slide door into cutout in coop, secure with 4 mounting screws (included).
-
Manual Control: Open and close the door manually using the keypad menu. With the optional Wi-Fi module, use the Universal Web App remote control.
-
1 inch dimensional lumber construction - Outdoor rated select grade pine
-
100% predator proof! Have peace of mind knowing that your hens are safe at night. Door cannot be opened by raccoons, cougars, bobcats, mink, coyotes, opossums, skunks or any other nighttime predator
-
Fully assembled.
Extra Large Automatic Chicken Door Specifications:
|
Input Voltage
|
85 - 264 Volts AC
|
|
AC Power consumption
|
1 Watt
|
|
DC Power consumption (idle)
|
40mA @ 12VDC
|
|
DC Power consumption (power save mode)
|
20mA @ 12VDC
|
|
DC Power consumption (chicken door opening or closing)
|
150mA-300mA @ 12VDC
|
| Coop door opening dimensions |
|
|
15 inches high x 15 inches wide
|
|
|
Extra Large Automatic Chicken Door cutout dimensions
|
33 1/2 inches high x 17 1/2 inches wide
|
|
Extra Large Automatic Chicken Door overall dimensions
|
33 1/2 inches high x 21 1/2 inches wide x 5 5/16 inches deep
|
| Door Controller Dimensions |
5 inches high x 13 1/2 inches wide x 5 inches deep |
|
|
|
Material
|
- Select grade pine rated indoor/outdoor treated with non-toxic lifetime treatment
- Brushed aluminum metal faceplate
- 5/8 inch Solid steel Acme threaded screw drive
|
|
Drive mechanism
|
solid steel worm / screw drive
|
|
DC motor
|
12 Volts
|
|
Door opening time
|
~2 minutes
|
|
Door closing time
|
~2 minutes
|
|
Operating temperature
|
-20 to +185 ℉
|
Internet Wi-Fi Module Key Features:
-
Coop Tender Universal Web App™: The latest technology in Mobile Optimized Web Apps. Access on any smartphone, iPad, tablet or computer with an Internet browser and connection.
-
Monitor and control your coop door from anywhere in the world with an Internet browser and connection.
-
Door Programming - Program your door from the Universal Web App™
-
Download and view data log charts
- Ambient light values
- Door open and closed times
- Temperature
- Battery charge
-
Real time coop door status
- Coop temperature
- Door status
- Door control mode (Dusk to Dawn, Schedule or Manual)
- Receive alerts SMS and email alerts from your door
- Door status changes (Opening, Open, Closing, Closed)
- Low battery voltage
Solar Operation Notes:
- WiFi Module consumes additional 40 milliAmps of power
- 15 Watt solar panel + 12 Volt 5Ah SLA battery sufficient to operate the system in most parts of the U.S.*
*See the Direct Normal Solar Irradiance map below to check average Irradiance (solar energy) available in your location. The map shows a gradient color coded chart with 9 levels of Irradiance measured in kWh/M2/Day.
If you live in a light-yellow area on the map, or the area typically receives less than 4.9 kWh/m2/day, it may be necessary to connect a second or larger battery.
In the map above, the light yellow color gradient represents an area with low solar energy. The following link will take you to a PDF version of the map directly from the National Renewable Energy Laboratory (NREL) website: https://www.nrel.gov/gis/assets/pdfs/solar_dni_2018_01.pdf

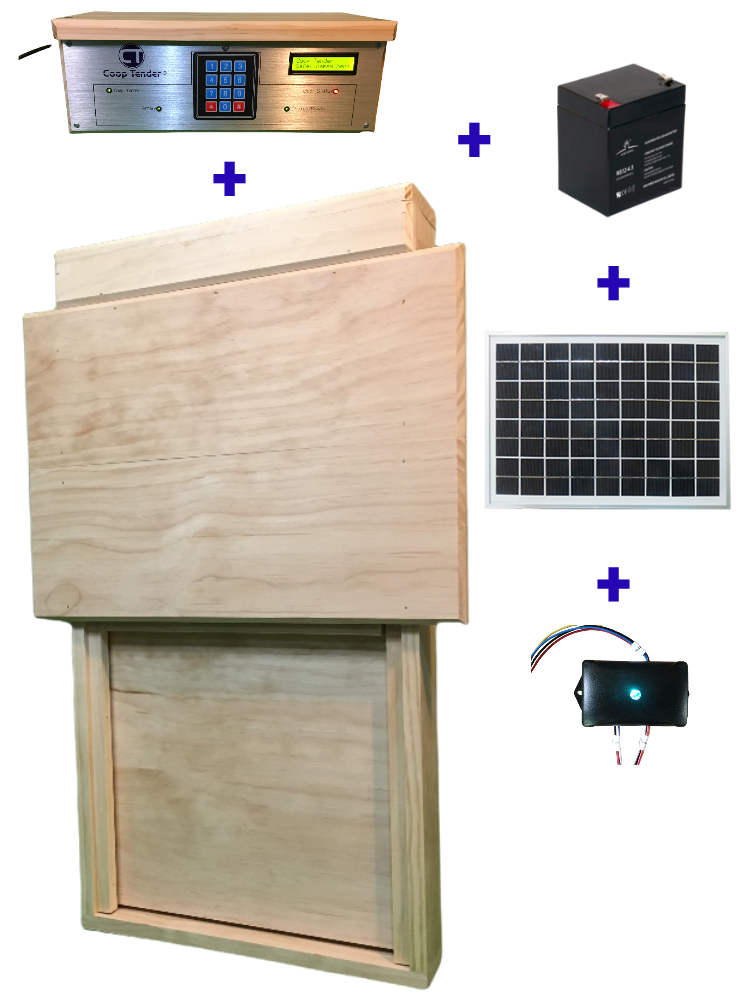

Included in your Extra Large Automatic Chicken Door - Bundle:
Requirements:
