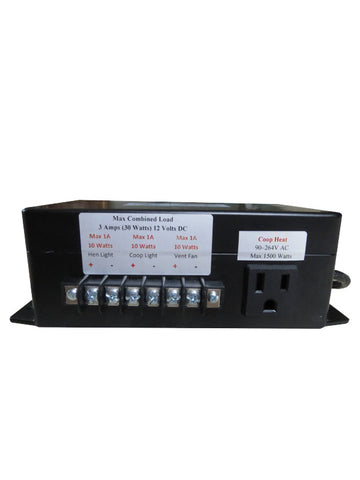

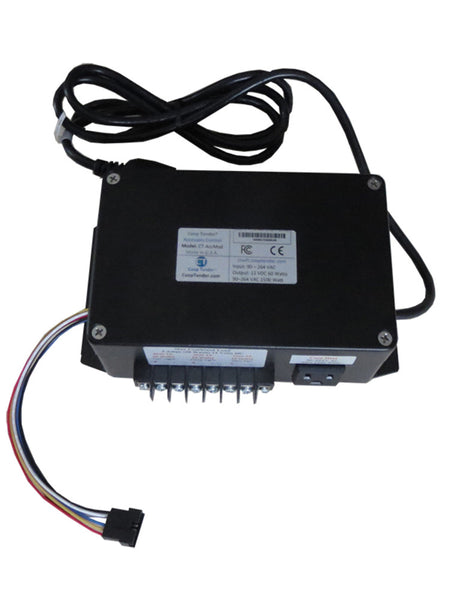

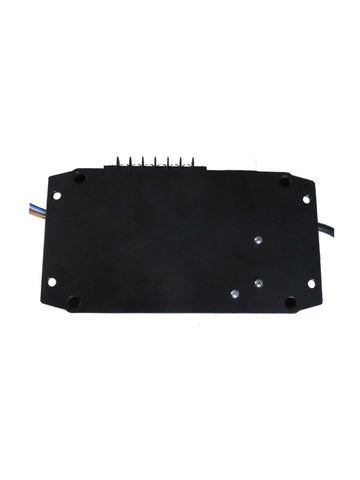

Chicken Coop Door Accessory and Heat Control Module

Automatically controls two sets of lights, ventilation and heat in your coop.  Connects through the Coop Tender Internet Wi-Fi Module to allow full control of your coop accessories through the Internet!

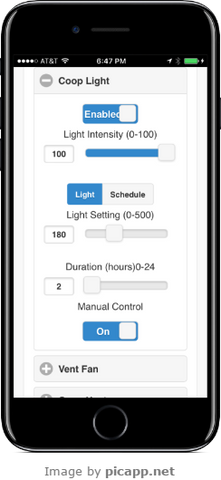

Hen Light and Coop / Security Light:

Each light automatically switches on based on the ambient light value reported by Coop Tender or by Schedule.  Light stays on for the duration set in the web app.

  • Winter hen laying light
  • Security Light
  • Inside coop evening ambient lighting
  • Outside coop evening ambient lighting
  • Lights not included (see below for some recommendations on Amazon)

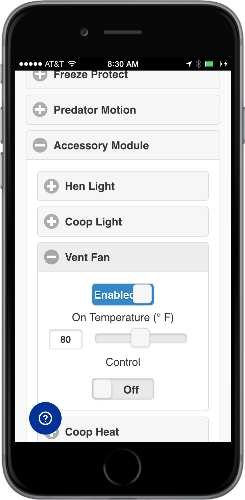

Coop Ventilation:

Controls ventilation fan power when coop temperature is too warm giving your hens the comfort they deserve.

Ventilation fans are automatically turned on when the coop temperature rises above the temperature configured via the CT Internet Wi-Fi Web App.

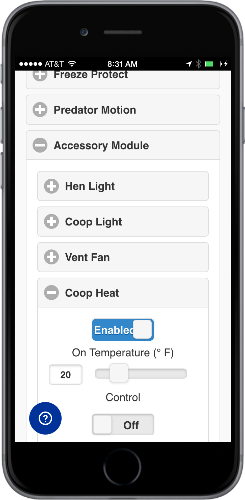

Coop Heat:

Controls up to 1500 Watts AC electric heaters or water deicers to protect your livestock from dangerously freezing temperatures in the winter.

Heat is automatically turned on when the coop temperature falls below the temperature configured via the CT Internet Wi-Fi Web App.

100% solid state - no mechanical relays which are pone to failure over time are used.

Specifications:

Dimensions

7 1/2” L x 4” W x 2 1/2” H

Case material Industrial Aluminum

Input Voltage

90-264 Volts AC

Output Voltage

12 Volts DC (LIght and Fan Control)

90-264 Volts AC (Heat Control)

Max Light Circuit Power 10 Watts / 1500 mA per circuit @ 12 VDC
Max Vent Fan Power 10 Watts / 1500 mA @ 12 VDC
Max Heater Power 1500 Watts / 10 Amps @ 120 VAC



Requirements:

Accessories are not included

Suggestions for your accessories:

Coop Light:

Each light circuit can drive 10 Watts of 12 Volt LED lighting.  These lights generally have light output comparable to a 50 to 100 Watt halogen bulb.  No need to worry about the light being too bright as you may dim the light through the Accessory Control Module settings in the CT Wi-Fi Web App.

Coop Ventilation Fan:

Fans can be a little tricky to choose. The fans and grill below may be purchased on Amazon.com. The fans below provide good air flow for the amount of power they use. You can hook up at least two of these fans to the Accessory Control Module's Vent Fan circuit - up to four of the 72.3 CFM fans!

Coop Heater

You may use any AC Electrical Powered Heater(s) with a maximum combined power of 1,500 Watts (about 10 Amps).

$ 199.99
