Coop Tender Internet Wi-Fi Module
CT-InternetWiFi
Monitor and remote control your automatic chicken coop door from the Internet!
Coop Tender® Internet Wi-Fi Module and Universal Web App™ is a combination of micro-electronics and Internet computer software which permits control, configuration and monitoring of your Coop Tender® Automatic Chicken Coop Door - from anywhere in the world with an Internet connection and browser.
The Wi-Fi radio module connects to your Coop Tender® Automatic Chicken Coop Door. After connected to your WiFi network*, the Coop Tender® Universal Web App™ may be accessed using any smartphone, tablet or computer with an Internet connection and browser.
Connects to 802.11 b, g and n networks and supports WEP, WPA and WPA2 security protocols.
Key Features:
- Monitor and Control your door from anywhere in the world with a web browser and Internet connection
- Configure Door Control settings - great for changing open and close times if you are using a time based schedule
-
View key door metric charts
- Ambient Light
- Door Status
- Temperature
- Battery Charge
-
Real time coop door status
- Door Status
- Coop Temperature
- Door Control Mode
- Receive SMS and email alerts
- Door status changes (Opening, open, closing and closed)
- Battery voltage warnings
- Accessory status changes - with optional Coop Accessory Control module
- Predator motion alerts - with optional Chicken Coop Predator Motion module

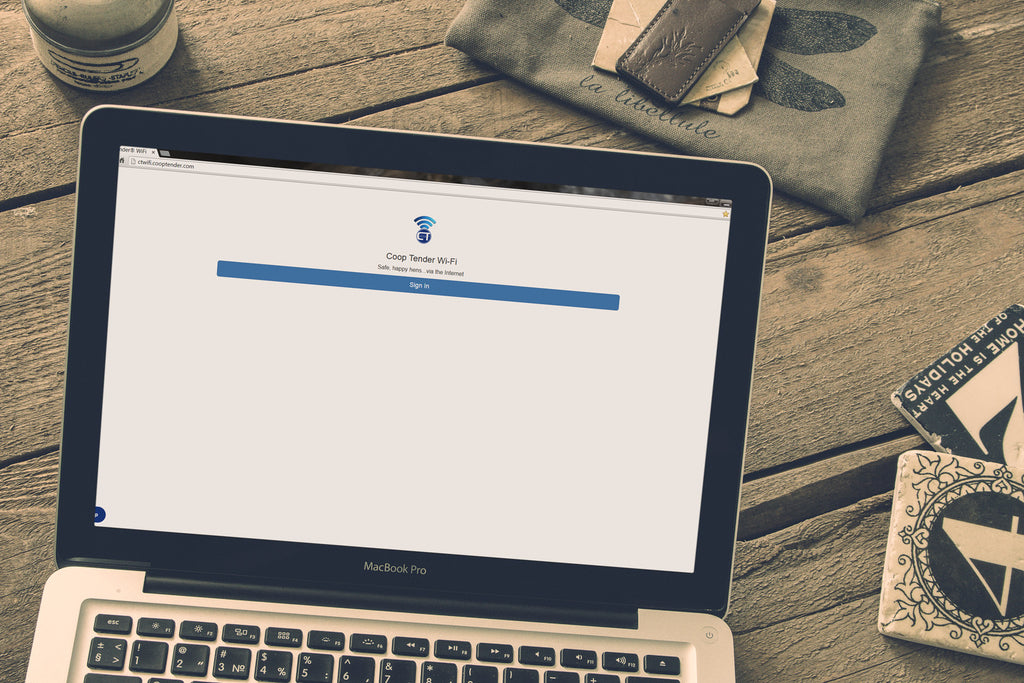

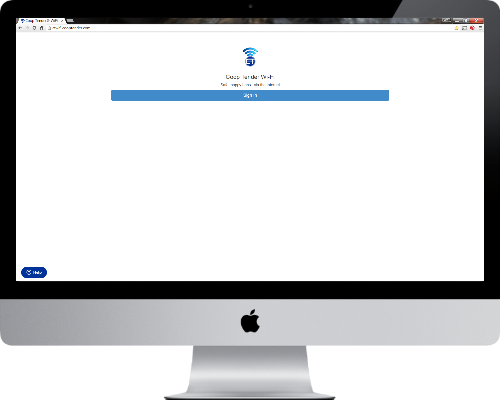

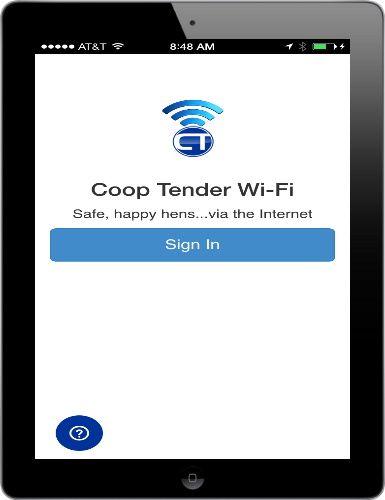

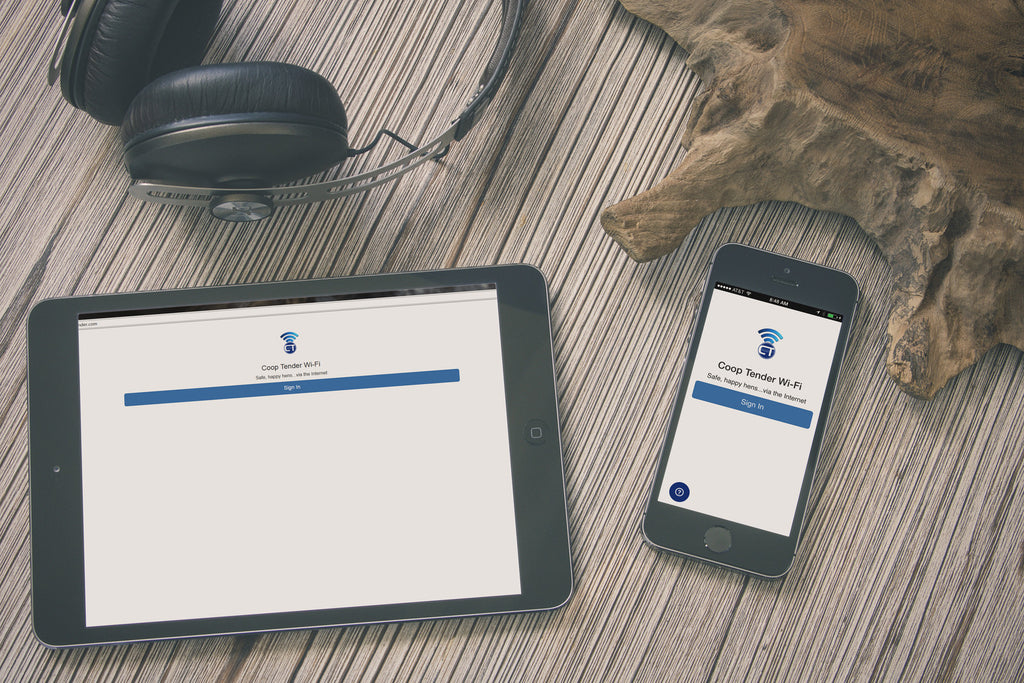

Coop Tender Universal Web App™ utilizes the latest in mobile optimized web apps to provide a consistent interface and usability on any device with an Internet connection and browser.
 |
 |
 |

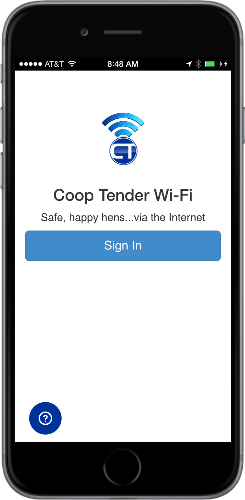

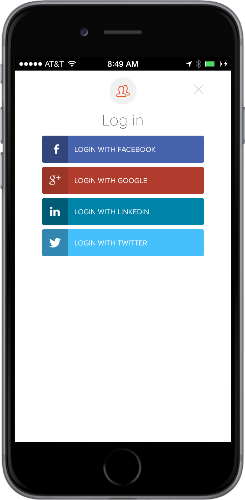

Facebook, Google, or Twitter social login eliminates forgotten user names and passwords. Your social account is your gateway to accessing your door from the Internet.

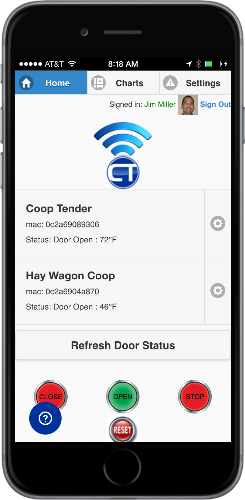

The home page provides at-a-glace status for as many doors as you have installed with a Coop Tender® Internet WiFi Module.

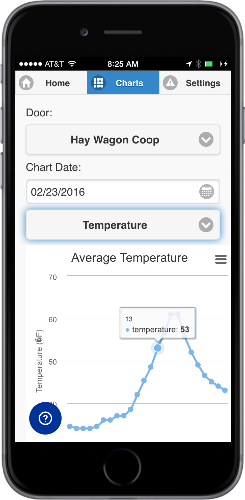

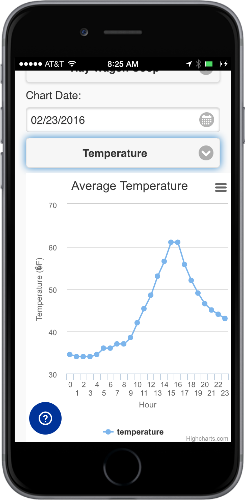

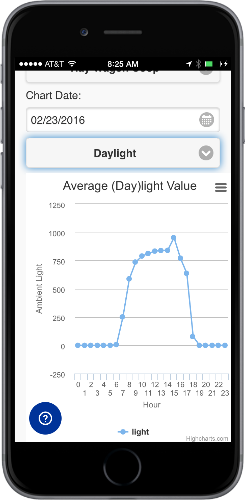

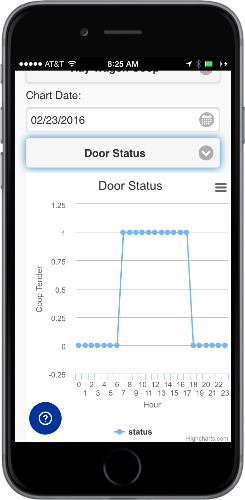

View and download key metric charts (Door Status, Daylight Value, Temperature and System Voltage:
 |
 |
 |
 |

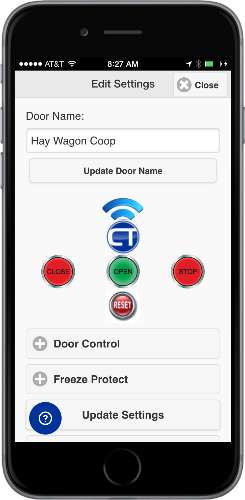

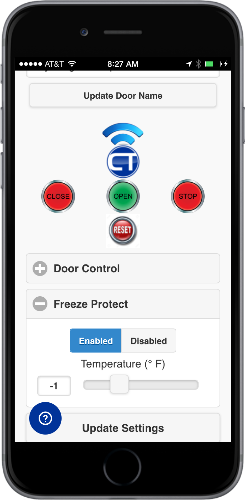

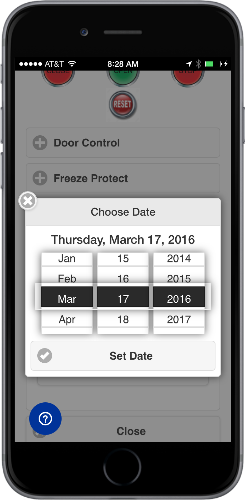

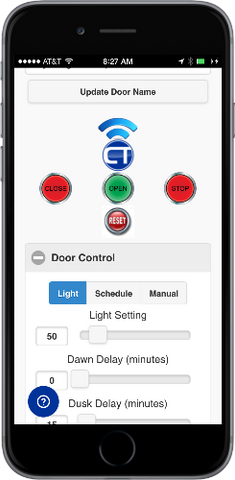

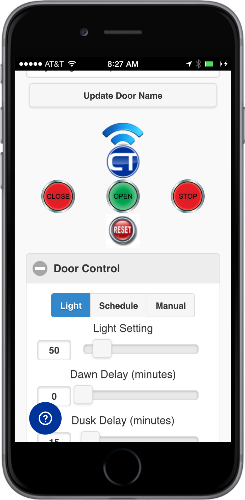

Update door programming with intuitive mobile optimized web app interface controls:
 |
 |
Specifications:
|
Operating Voltage |
5 Volts DC |
|
DC Power consumption |
40mA |
|
Dimensions |
54mm W x 41mm H x 79mm L 2.1 in. W x 1.6 in. H x 3.1 in. L |
|
Operating temperature |
-20 to +80 °C -4 to 176 ℉ |
Optional WiFi Module Accessories: These optional accessories plug into the Internet WiFi Module.
Coop Accessory Control Module:
 |
 |
Hen Light and Coop / Security Light:
Each light automatically switches on based on the ambient light value reported by Coop Tender or by Schedule. Light stays on for the duration set in the web app.
- Winter hen laying light
- Security Light
- Inside coop evening ambient lighting
- Outside coop evening ambient lighting
Coop Ventilation:
Controls ventilation fan power when coop temperature is too warm giving your hens the comfort they deserve.
Ventilation fan is automatically turned on when the coop temperature rises above the temperature configured via the Coop Tender Universal Web app.
Coop Heat:
Controls up to 1500 Watts AC electric heaters or water deicers to protect your livestock from dangerously freezing temperatures in the winter.
Heat is automatically turned on when the coop temperature falls below the temperature configured via the CT Internet Wi-Fi Web App.
100% solid state - no mechanical relays which are pone to failure over time are used.
Note: Accessories (lights, fan, heater) not included
Predator Motion Detect Module:
|
|
 |
Actively deters predators and alerts you of their presence!
Coop Tender Predator Motion Sensor Module automatically arms when the door is closed.
When predator motion is sensed, the system goes into Predator Alert Mode:
- Lights on module flash red |
O | for 30 seconds - working to scare potential predators away - Activates "Security Light": Integrates with the Coop Tender Accessory and Heat Control Module. Automatically switches the Security Light on for 1 minute - the bright light will further scare the predator away
- Sends SMS and email Predator Motion Alert - informing you that your hens might be in danger!
Download the Automatic Chicken Coop Door Internet Wi-Fi Owner Manual
Requirements:
- Coop Tender® Automatic Chicken Door, Large Automatic Chicken Door, Extra-Large Automatic Chicken Door, or Automatic Chicken Door Controller.
- An 802.11 b/g or n network with a signal which is within range of your chicken coop.
- An iPhone or Android smartphone to connect the module to your WiFi network. After connecting a smartphone is not required.
- A Cloud Service Subscription. A 1-year subscription is included with purchase.
