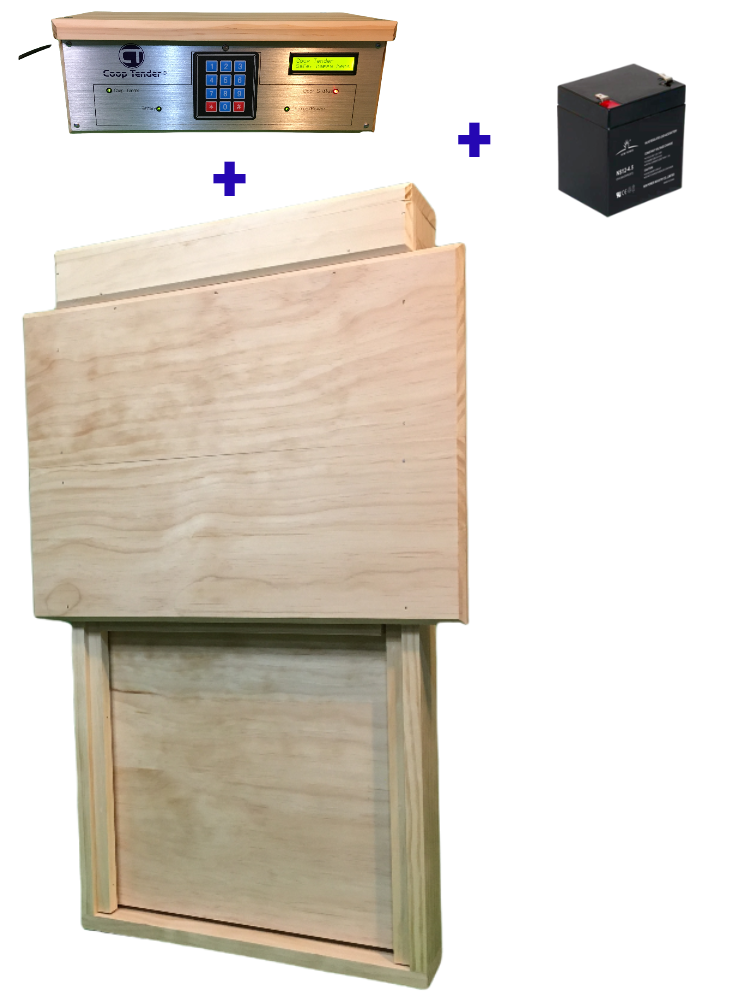

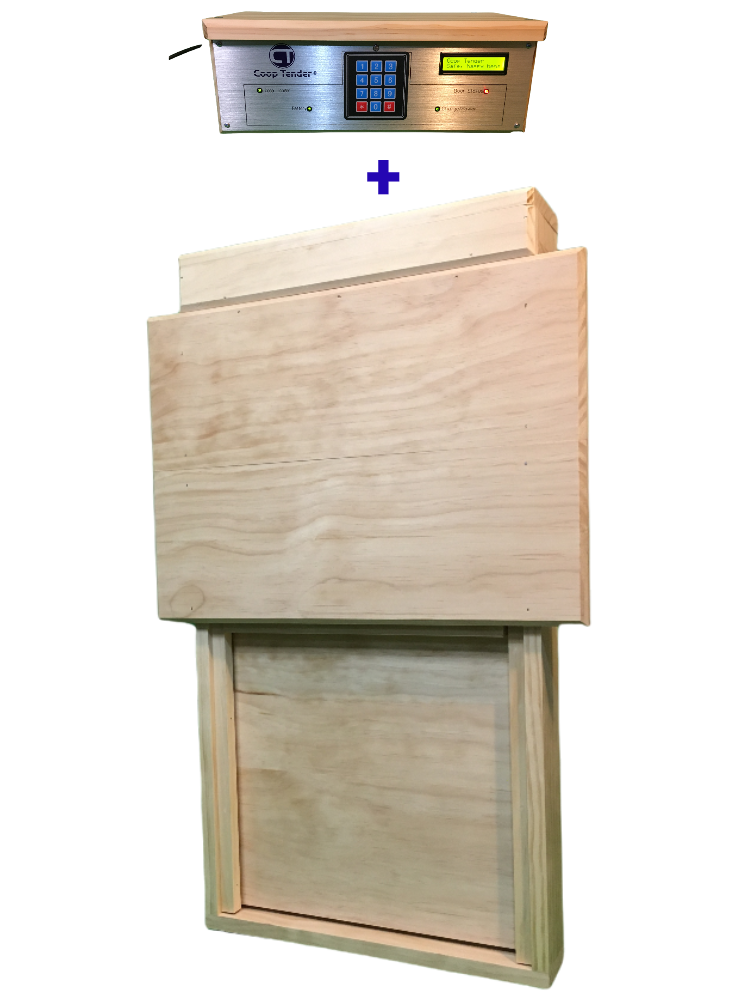

Extra Large Automatic Chicken Door + Battery Backup

Coop Tender® Internet WiFi Enabled Extra Large Automatic Chicken Door is a fusion of energy efficient micro-controller electronics, solid steel drive and time-honored wood craftsmanship.

Suitable for all chicken breeds, ducks, geese as well as small and larger turkey varieties up to 30 pounds.

Automatically opens your coop door at dawn and securely closes it at dusk, or schedule door open and close times!

Programmable door controller: Program custom options, adjust settings and manually override your door.

Energy Efficient: Consumes less than 1 watt when plugged into a standard electrical outlet.

Connect the optional solar module to operate your door with energy from the sun.

Internet WiFi Enabled Door: Connect the optional coop door Internet Wi-Fi Module to control, monitor, program and receive coop door alerts from anywhere in the world with an Internet connection and browser. Use your smartphone as a remote control for your extra large automatic chicken door.

Our Extra Large Automatic Chicken Door is constructed with solid 1 inch dimensional lumber. Indoor / Outdoor rated select grade pine lumber is treated with an environmentally safe, non-toxic treatment which lasts a lifetime and never needs to be re-applied

At-A-Glance Status LED Lights make it easy to check the status of your coop door from a distance in the dark. ;

Key Extra Large Automatic Chicken Door Features:

  • Automatically Opens and Closes your Coop Door
  • Three modes of operation: Dawn-to-Dusk (A.K.A. Dusk-to-Dawn), Schedule, or Manual
  • Internet Enabled - Internet Wi-Fi module sold separately.
  • Programmable Freeze Protect - door stays closed when it's too cold outside
  • Programmable dawn and dusk delays - delay opening and closing for any amount of time (1 minute to 10 hours).
  • Computer driven digital control eliminates frozen mechanical components in winter
  • Solid Steel Acme threaded screw drive: True door lockdown. Predators are not able to open it when it is closed.
  • Simple installation.  Slide door into cutout in coop, secure with 4 mounting screws (included).
  • Manual Control:  Open and close the door manually using the keypad menu. With the optional Wi-Fi module, use the Universal Web App remote control.
  • 1 inch dimensional lumber construction - Outdoor rated select grade pine
  • 100% predator proof!  Have peace of mind knowing that your hens are safe at night. Door cannot be opened by raccoons, cougars, bobcats, mink, coyotes, opossums, skunks or any other nighttime predator
  • Fully assembled

Extra Large Automatic Chicken Door Specifications:

Input Voltage

85 - 264 Volts AC

AC Power consumption

1 Watt

DC Power consumption (idle)

40mA @ 12VDC

DC Power consumption (power save mode)

20mA @ 12VDC

DC Power consumption (chicken door opening or closing)

150mA-300mA @ 12VDC

Coop door opening dimensions


15 inches high x 15 inches wide

Extra Large Automatic Chicken Door cutout dimensions

33 1/2 inches high x 17 1/2 inches wide

Extra Large Automatic Chicken Door overall dimensions

33 1/2 inches high x 21 1/2 inches wide x 5 5/16 inches deep

Door Controller Dimensions 5 inches high x 13 1/2 inches wide x 5 inches deep

Material

  • Select grade pine rated indoor/outdoor treated with non-toxic lifetime treatment
  • Brushed aluminum metal faceplate
  • 5/8 inch Solid steel Acme threaded screw drive

Drive mechanism

solid steel worm / screw drive

DC motor

12 Volts

Door opening time

~2 minutes

Door closing time

~2 minutes

Operating temperature

-20 to +185 ℉


Included in your Extra Large Automatic Chicken Door - Bundle:
