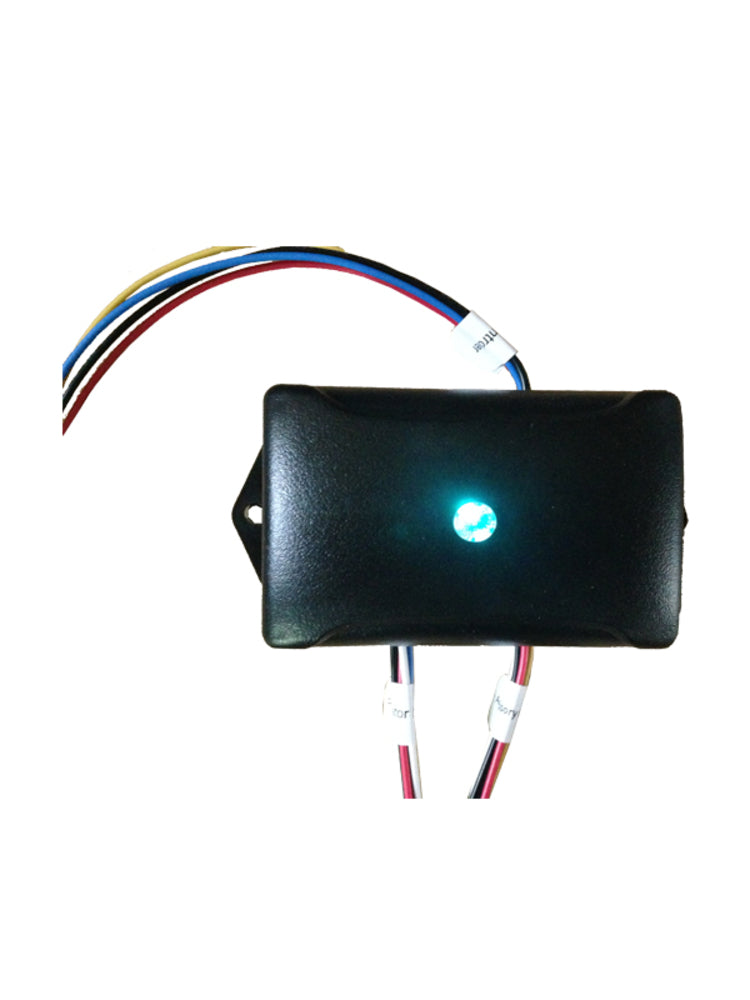

Extra Large Automatic Chicken Door Internet WiFi Module

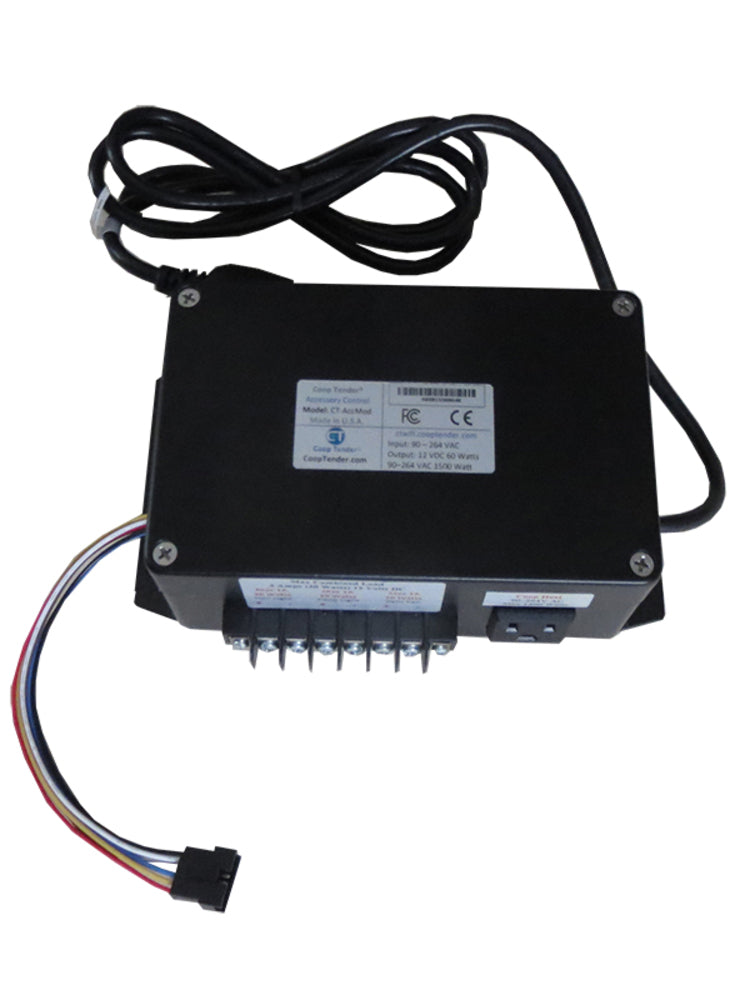

Extra Large Automatic Chicken Door Accessory Control Module

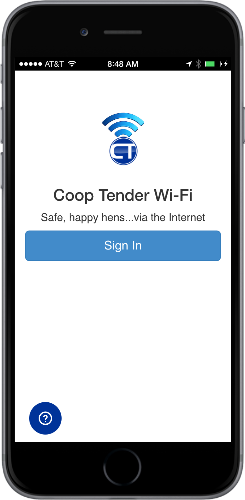

Extra Large Automatic Chicken Door Universal Web App

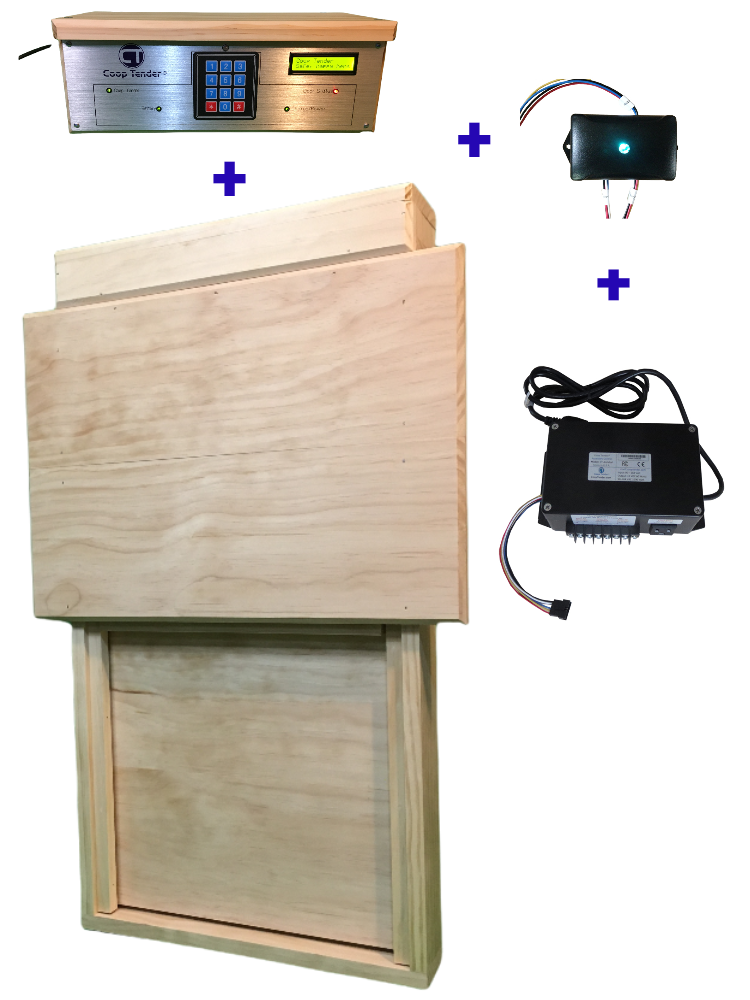

Extra Large Automatic Chicken Door + Internet Wi-Fi + Accessory Control Bundle

CT-005-WiFiAcc

Regular price USD 990.00 PriceUSD 617.47 Save USD 372.53
/
Shipping calculated at checkout.

Suitable for all chicken breeds, ducks, geese as well as small and larger turkey varieties up to 30 pounds.
  • Automatically opens your coop door at dawn and securely closes it at dusk, or schedule door open and close times.
  • Programmable coop door controller: Program custom options, adjust settings and manually override your door.
  • Energy Efficient: Consumes less than 4 watts when plugged into a standard electrical outlet.
  • Constructed with Solid Indoor / Outdoor rated lumber - no plywood.
  • Treated with Rain Guard non-toxic wood sealer.
  • Solar Power Capable: with the optional coop door solar module.
  • At-A-Glance Status LED Lights make it easy to check the status of your coop door from a distance in the dark.

Included in your Extra Large Automatic Chicken Door Wi-Fi Accessory Control Bundle:

Requirements:
  • Automatically Opens and Closes your Coop Door.
  • Three modes of operation: Dawn-to-Dusk (A.K.A. Dusk-to-Dawn), Schedule, or Manual.
  • Internet Enabled: Internet Wi-Fi module sold separately.
  • Solar Coop Door Operation: Connect the optional coop door solar module to operate using energy from the sun.
  • Programmable Freeze Protect - door stays closed when it's dangerously cold outside, working to protect your poultry investment.
  • Programmable dawn and dusk delays - delay opening and closing for any amount of time (1 minute to 10 hours).
  • Microcontroller digital control eliminates frozen mechanical components in winter.
  • Solid Steel Acme threaded screw drive: True door lockdown. Predators are not able to open it when it is closed.
  • Simple installation.  Slide door into cutout in coop, secure with 4 mounting screws (included).
  • Manual Control:  Open and close the door manually using the keypad menu. With the optional Wi-Fi module, use the Universal Web App remote control.
  • Solid indoor/outdoor rated lumber construction - Treated with Rain Guard non-toxic wood sealer.
  • 100% predator proof!  Have peace of mind knowing that your hens are safe at night. Door cannot be opened by raccoons, cougars, bobcats, mink, coyotes, opossums, skunks or any other nighttime predator.
  • Fully assembled

Input Voltage

85 - 264 Volts AC (Electric Operation)

12 - 19 Volts DC (Solar Operation)

AC Power consumption

1 Watt

DC Power Consumption (idle)

40mA @ 12VDC

DC Power Consumption (power save mode)

20mA @ 12VDC

DC Power Consumption (chicken door opening or closing)

150mA-300mA @ 12VDC

Max Charging Power

600mA

Coop Cutout Dimensions

Standard (CT-003) 13.5" W x 26.5" H
Large (CT-004) 15" W x 30.5" H
X-tra Large (CT-005) 17.5" W x 34.25" H
Small Coop (CT-006) 11" W x 20" H

Coop Door opening dimensions

Standard (CT-003) 10" W x 10" H
Large (CT-004) 12" W x 12" H
X-tra Large (CT-005) 15" W x 15" H
Small Coop (CT-006) 8" W x 8" H

Material

  • Solid Indoor/Outdoor rated lumber treated with non-toxic wood sealer.
  • Brushed aluminum metal faceplate
  • 5/8 inch Solid steel Acme threaded screw drive

Drive mechanism

Solid steel worm / screw drive

DC motor

12 Volts

Door opening time

~1 minute

Door closing time

~1 minute

Operating temperature

-20 to +185 ℉
