Bundle: Automatic Coop Door Coop Tender System

Coop Tender® Internet WiFi Enabled Automatic Chicken Coop Door is a fusion of advanced micro-controller electronics, solid steel drive and time-honored wood craftsmanship.

Automatically opens your coop door at dawn and securely closes it at dusk, or schedule door open and close times!

Programmable door controller: Program custom options, adjust settings and manually override your door.

Automatic Coop Door is constructed with solid 1 inch dimensional lumber. Indoor / Outdoor rated select grade pine lumber is treated with an environmentally safe, non-toxic treatment which lasts a lifetime and never needs to be re-applied!

At-A-Glance Status LED Lights make it easy to check the status of your coop door from a distance in the dark. ;

Key Chicken Coop Door Features:

  • Automatically Opens and Closes your Coop Door
  • Three modes of operation: Dawn-to-Dusk (A.K.A. Dusk-to-Dawn), Schedule, or Manual
  • Internet Enabled - Internet Wi-Fi module included
  • Freeze Protect - door stays closed when it's too cold outside
  • Programmable dawn and dusk delays - delay opening and closing for any amount of time (1 minute to 10 hours).
  • Computer driven digital control eliminates frozen mechanical components in winter
  • Solid Steel Acme threaded screw drive: True door lockdown. Predators are not able to open it when it is closed.
  • Simple installation.  Slide door into cutout in coop, secure with 4 mounting screws (included).
  • Manual Control:  Open and close the door manually using the keypad menu. With the optional Wi-Fi module, use the Universal Web App remote control.
  • 1 inch dimensional lumber construction - Outdoor rated select grade pine
  • 100% predator proof!  Have peace of mind knowing that your hens are safe at night. Door cannot be opened by raccoons, cougars, bobcats, mink, coyotes, opossums, skunks or any other nighttime predator
  • Fully assembled

Automatic Chicken Door Specifications:

Input Voltage

85 - 264 Volts AC (Electric Operation)

12 - 19 Volts DC (Solar Operation)

DC Power consumption (idle)

30mA @ 12VDC

DC Power consumption (power save mode)

20mA @ 12VDC

DC Power consumption (chicken door opening or closing)

300mA-400mA @ 12VDC

Automatic Chicken Door cutout dimensions

26 1/2 inches high x 13 1/2 inches wide

Automatic Chicken Door overall dimensions

26 1/2 inches high x 17 1/2 inches wide x 5 5/16 inches deep

Coop door opening dimensions

9 5/8 inches high x 10 5/8 inches wide

Material

  • Select grade pine rated indoor/outdoor treated with non-toxic lifetime treatment
  • Brushed aluminum metal faceplate
  • 5/8 inch Solid steel Acme threaded screw drive

Drive mechanism

solid steel worm / screw drive

DC motor

12 Volts

Door opening time

~1 minute

Door closing time

~1 minute

Operating temperature

-40 to +185 ℉

Internet Wi-Fi Module Key Features:

  • Coop Tender Universal Web App™: The latest technology in Mobile Optimized Web Apps. Access on any smartphone, iPad, tablet or computer with an Internet browser and connection.
  • Monitor and control your coop door from anywhere in the world with an Internet browser and connection.
  • Door Programming - Program your door from the Universal Web App
  • Download and view data log charts
    • Ambient light values
    • Door open and closed times
    • Temperature
    • Battery charge
  • Real time coop door status
    • Coop temperature
    • Door status
    • Door control mode (Dusk to Dawn, Schedule or Manual)
    • Receive alerts SMS and email alerts from your door
      • Door status changes (Opening, Open, Closing, Closed)
      • Low battery voltage

    Accessory and Heat Control Module Key Features:

    Controls 12 volt DC LED lights, 12 volt DC ventilation and 115 VAC heat in your coop. Accessories not included.

    Hen Light and Coop Light:

    Schedule and Ambient Light modes of automatic operation.

    • Winter hen laying light
    • Security Light
    • Inside coop evening ambient lighting
    • Outside coop evening ambient lighting
    • Lights not included

    Coop Ventilation:

    Controls coop ventilation when coop temperature is too warm giving your hens the comfort they deserve.

    Ventilation fans are automatically turned on when the coop temperature rises above the temperature set in the Universal Web App

    Vent fan not included.

    Coop Heat:

    Controls your heater up to 1,500 Watts of AC electric heater to protect your livestock from dangerously freezing temperatures in the winter.

    Heater is automatically turned on when the coop temperature drops below the temperature set in the Universal Web App

    Heater not included.

    Predator Motion Detect Key Features:

    Actively deters predators and alerts you of their presence!

    • Lights on module flash red |         O         | for 30 seconds - working to scare potential predators away
    • Activates "Security Light": Integrates with the Coop Tender Accessory and Heat Control Module. Automatically switches the Security Light on for 1 minute - the bright light will further scare the predator away
    • Sends SMS and email Predator Alert - informing you that your hens might be in danger!

    Included in your Chicken Coop Door System Bundle:

    592.16 679.96


    Customer Reviews

    Based on 1 review Write a review

    Automatic Coop Door

    d

    How does it work?

    Our automatic coop door features Dawn-to-Dusk (a.k.a. Dusk-to-Dawn) or Time Schedule based operation giving you complete flexibility.  Dawn and Dusk delays may be set and the Daylight Value which triggers the door to open and close may be adjusted using the keypad menu. Time Schedule operation open and close times may also be adjusted using the keypad menu.  The coop door automatically opens and automatically closes based on the chosen settings.
    d

    How can your automatic coop door be predator proof?

    Coop Tender uses a solid steel worm drive, also known as a screw drive, mechanism which is attached directly to the door. When the door is closed, nothing can open it. It's similar in concept to a worm / screw driven garage door.
    d

    What if I need to manually open or close the coop door?

    The keypad menu may be used to manually open and close your coop door.  Note that doing so will place your door into Manual Mode until you reset the door or an automated method is reactivated using the keypad menu.
    d

    Can your coop door withstand outdoor weather?

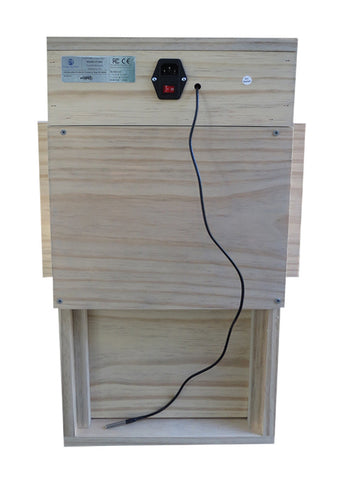

    Yes. The electronics are protected within the controller enclosure at the top of the door. Any exposed wooden parts are treated with a non-toxic, environmentally friendly wood treatment which never needs to be reapplied. We recommend that the back of the unit ,where the AC power inlet is located, not be exposed to rain. It is normally inside of the coop when installed.
    d

    Will the door hurt any of my chickens?

    No. The automatic coop door closes in about 1 minute. That gives your chickens plenty of time to make it through the door, into the coop, without harm.
    d

    Will any of my chickens be locked out of the coop?

    No. First, ensure that your chickens are trained to roost in the coop at night.  They will then go into the coop each night before dark. Our automatic coop door comes pre-programmed to operate in Dusk to Dawn mode with settings which accommodate most chickens.  You can delay door closure for any chickens who might stay out later than others.
    d

    What powers your automatic chicken coop door?

    Our automatic coop doors will run from Solar Energy or AC Electrical Power. For solar powered doors, solar energy is stored in the battery which comes with your solar coop door. An optional backup battery may be purchased to power your chicken coop door in the case of power outage for our AC electric powered coop door.
    d

    Can your coop door be installed inside of the coop instead of facing outside?

    Yes.  You can install our door inside the coop.  If a window or skylight is installed in the coop allowing ambient light to enter, you can still use the Dusk to Dawn automatic operation method, otherwise you can set your door t operate on a schedule.  An optional Extendable Light Sensor may be ordered with your door and permits you to route the light sensor up to 12 inches from the door controller to access ambient light outside of the coop.

    Internet Wi-Fi Module

    d

    Can I use an unsecure Wi-Fi network?

    Yes.  Our Wi-Fi module may be used on open, unsecured Wi-Fi networks.  All data communication is done securely, regardless of the security protocol being utilized on your Wi-Fi network.
    d

    How is the Coop Door Wi-Fi module installed

    The Wi-Fi module plugs into a connector which comes out of the back of the controller unit.
    d

    Are there any monthly fees?

    No.  We do not charge monthly fees for our Internet Wi-Fi Module and Universal Web App technology.
    d

    What if my wireless network goes down?

    Our Coop Door Wi-Fi module will automatically attempt to reconnect until the wireless network becomes available again.  In the meantime, your automatic chicken coop door will still operate.
    d

    Do you need a home Wi-Fi network for the Wi-Fi module?

    Yes.  You will need a Wi-Fi access point, Wi-Fi router or Wi-Fi hotspot with a sufficient signal to reach your chicken coop.
    d

    Does it use my mobile phone for Internet connectivity?

    Your mobile phone is only used to connect your Coop Door Wi-Fi module to your wireless network for the first time. After your Internet Wi-Fi module is connected to your Wifi network, you can use any computer, tablet or mobile device with an Internet connection and Internet browser to access our Universal Web App for monitoring and managing your coop door.

    Uncategorized

    d

    Can I add the Wi-Fi module to the door later?

    Yes.  When ordered with our door, the necessary connector is installed prior to shipping.  Otherwise, you will receive the connector, which is simple to install, with your Wi-Fi module.
    d

    Is there a warranty?

    Yes. Our products are backed by a one year manufacturer's warranty, even on the electronic components.
