Bundle Builder Automatic Chicken Coop Door Controller

CT-BuildABundle

Regular priceUSD 199.99
/
Shipping calculated at checkout.

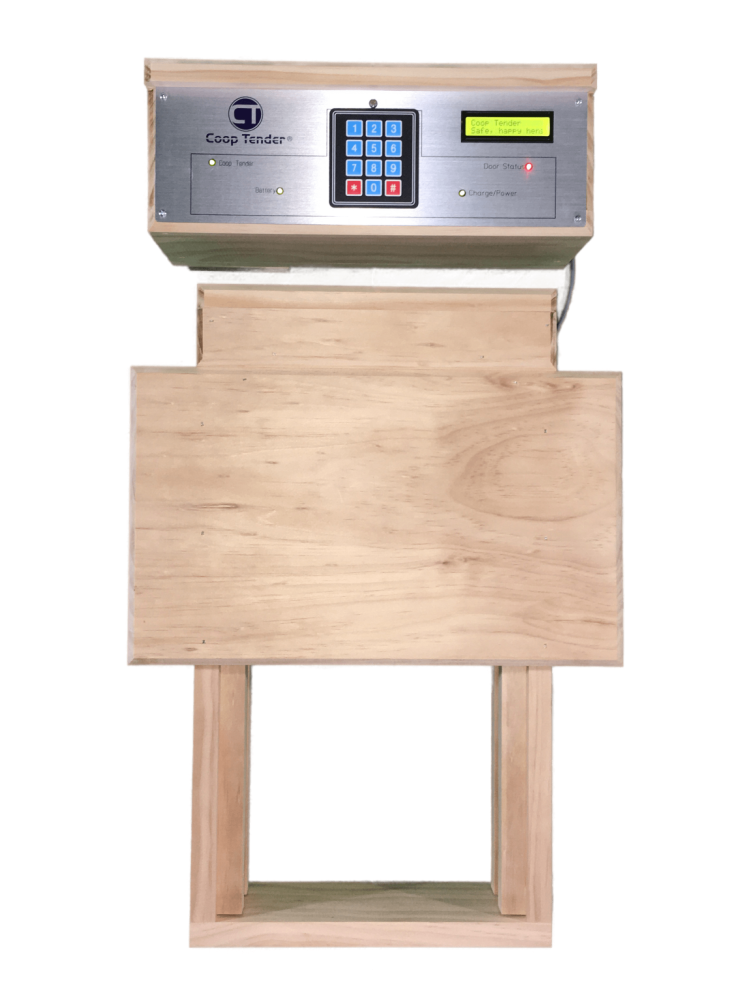

Your Coop Door Bundle starts with our Advanced Technology Automatic Chicken Coop Door Controller.

advanced technology automatic chicken coop door controller
Choose the door opening size most suitable for your coop and poultry needs, then, select from optional components such as backup battery, solar, Internet Wi-Fi connectivity, coop accessory control. and predator motion detection.

Build Your Own Bundle makes it easy to select your automatic chicken coop door configuration and options to suit your chicken coop and flock's needs.

Bundles start with our advanced technology automatic coop door controller.

Select which size door is most appropriate for your situation, then the options you would like to add.

  • Automatically Opens and Closes your Coop Door.
  • Three modes of operation: Dawn-to-Dusk (A.K.A. Dusk-to-Dawn), Schedule, or Manual.
  • Internet Enabled: Internet Wi-Fi module sold separately.
  • Solar Coop Door Operation: Connect the optional coop door solar module to operate using energy from the sun.
  • Programmable Freeze Protect - door stays closed when it's dangerously cold outside, working to protect your poultry investment.
  • Programmable dawn and dusk delays - delay opening and closing for any amount of time (1 minute to 10 hours).
  • Microcontroller digital control eliminates frozen mechanical components in winter.
  • Solid Steel Acme threaded screw drive: True door lockdown. Predators are not able to open it when it is closed.
  • Simple installation.  Slide door into cutout in coop, secure with 4 mounting screws (included).
  • Manual Control:  Open and close the door manually using the keypad menu. With the optional Wi-Fi module, use the Universal Web App remote control.
  • Solid indoor/outdoor rated lumber construction - Treated with Rain Guard non-toxic wood sealer.
  • 100% predator proof!  Have peace of mind knowing that your hens are safe at night. Door cannot be opened by raccoons, cougars, bobcats, mink, coyotes, opossums, skunks or any other nighttime predator.
  • Fully assembled.

Input Voltage

85 - 264 Volts AC (Electric Operation)

12 - 19 Volts DC (Solar Operation)

AC Power consumption

1 Watt

DC Power Consumption (idle)

40mA @ 12VDC

DC Power Consumption (power save mode)

20mA @ 12VDC

DC Power Consumption (chicken door opening or closing)

150mA-300mA @ 12VDC

Max Charging Power

600mA

Coop Cutout

Small: CT-006 11" W x 20" H
Standard: CT-003 13 1/2" W x 26 1/2" H
Large: CT-004 15" W x 30 1/2" H
X-tra Large: CT-005 17 1/2" W x 34 1/4" H
Certified Humane: CT-007 24" W x 41 1/2" H

Coop Door Opening

Small: CT-006 8" W x 8" H
Standard: CT-003 10" W x 10" H
Large: CT-004 12" W x 12" H
X-tra Large: CT-005 15" W x 15" H
Certified Humane: CT-007 21" W x 18" H

Material

  • Solid Indoor/Outdoor rated lumber treated with non-toxic wood sealer.
  • Brushed aluminum metal faceplate
  • 5/8 inch Solid steel Acme threaded screw drive

Drive mechanism

Solid steel worm / screw drive

DC motor

12 Volts

Door opening time

1-4 minutes

Door closing time

1-4 minutes

Operating temperature

-20 to +185 ℉

All U.S.-bound and international orders ship via FedEx, UPS, or the United States Postal Service (USPS).

Orders typically ship within 5 business days. If you have an urgent need, please contact us. We will do our best to accommodate.

The delivery map below displays the estimated delivery time for your automatic chicken door order after shipment.

automatic chicken door delivery map

Transit days may increase during peak holiday seasons.



Advanced Technology

Door Controller

Your Bundle includes our advanced technology Internet Wi-Fi Enabled automatic chicken coop door controller

Coop Doors by Opening Size

Use the chart below to help choose the best door opening size for your coop.

8 in. x 8 in.
Small

10 in. x 10 in.
Standard

12 in. x 12 in.
Large

15 in. x 15 in.
Extra Large

21 in. x 18 in.
Certified Humane

Small Chicken Breeds: Ameraucana, Bantams, Buttercup, Cochin, Dominique, Icelandic, Polish, Silkie, etc.

automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark

Average Size Chicken Breeds: Austerlorp, Barnvelder, Buckeye, Catalana, Delaware, Legbar, Langshan, Leghorn, Marans, New Hampshire, Orpington, Plymouth Rock, Rhode Island, Sex Link, Wyandotte, etc.

automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark

Large Chickens: Brahma, Jersey Giants, Cochin, etc.

automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark

Ducks

automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark

Turkeys (up to 20 lbs)

automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark

Geese

automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark

Large Turkeys, Peacocks, and other large birds.

automatic chicken door size comparison checkmark
automatic chicken door size comparison checkmark
Energy Efficient

Solar Power

Power your automatic chicken coop door with energy from the sun.

Solar module includes a solar panel and battery. The battery fits inside the door controller for convenience.

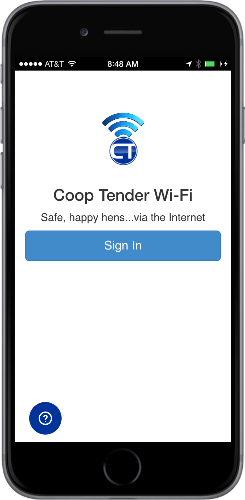

Advanced Technology

Internet Wi-Fi

Monitor, control and program your Coop Tender® Automatic Chicken Coop Door from anywhere in the world with an Internet connection and browser.

Univeral Web Appâ„¢ operates on any Internet browser.

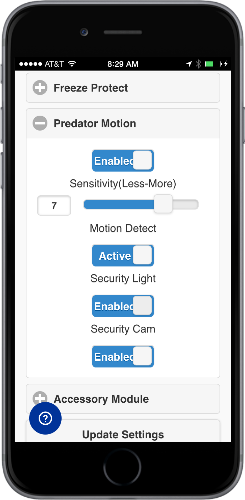

Passive Infrared

Predator Detection

Actively monitors your coop and alerts you if a potential predator is nearby.

Works to deter predators with flashing red lights and the appearance of danger to the potential predator.

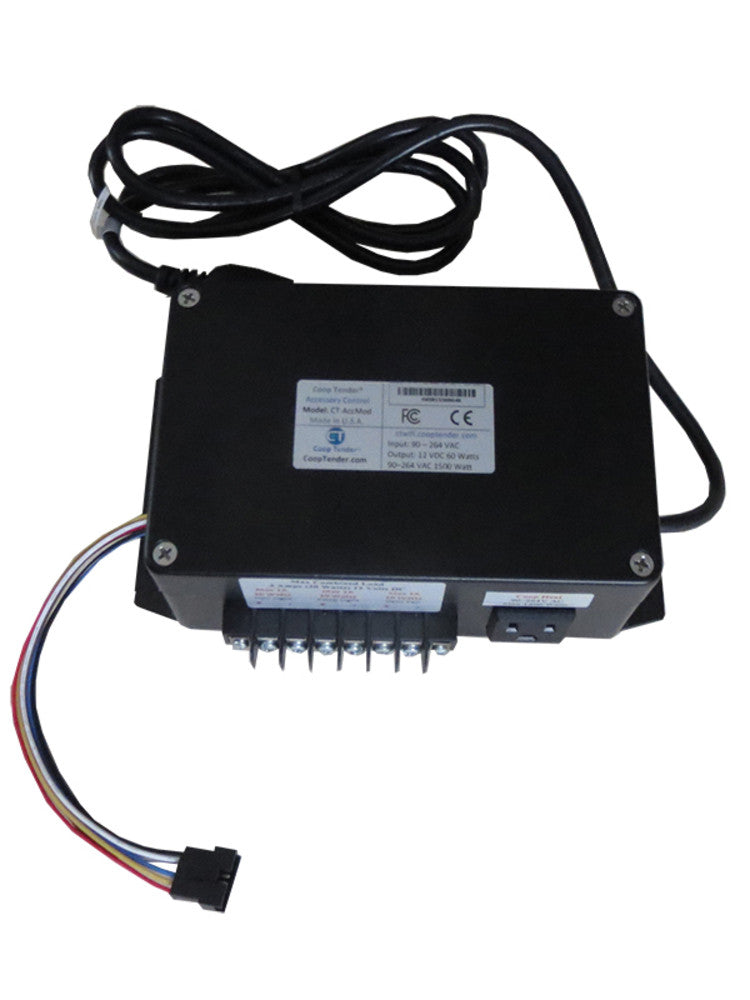

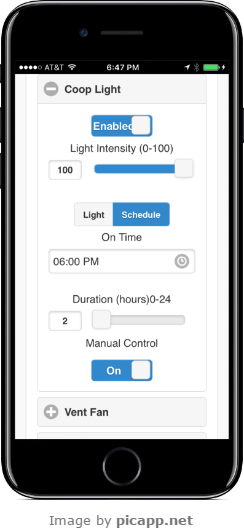

Coop Management

Accessory Control

Automatic and manual control for lights, ventilation and heat for your chicken coop.

Control, monitor and program accessory settings from anywhre in the world with an Internet connection and browser.
